Product Description

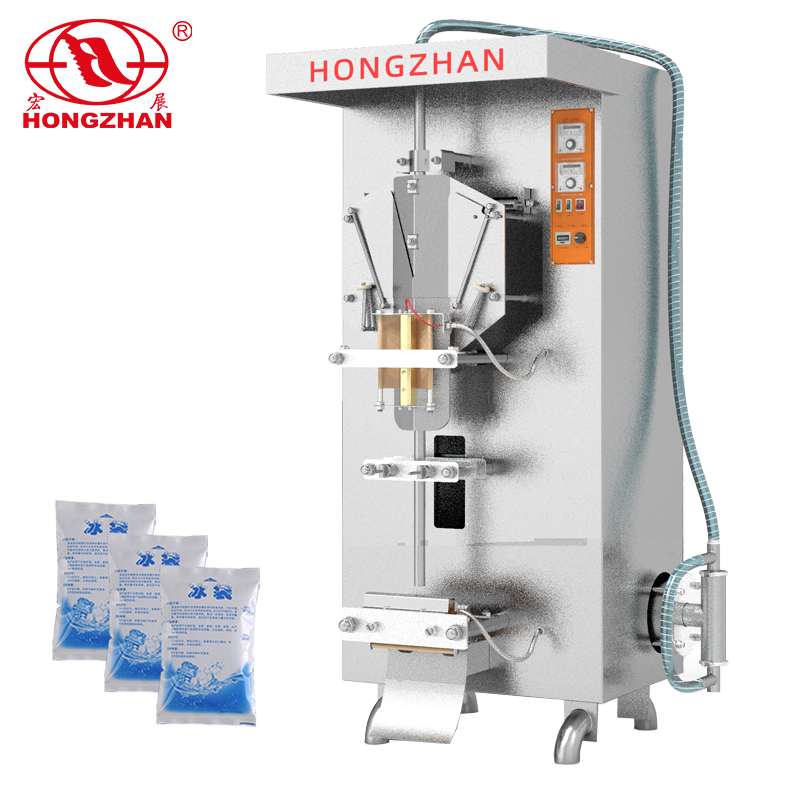

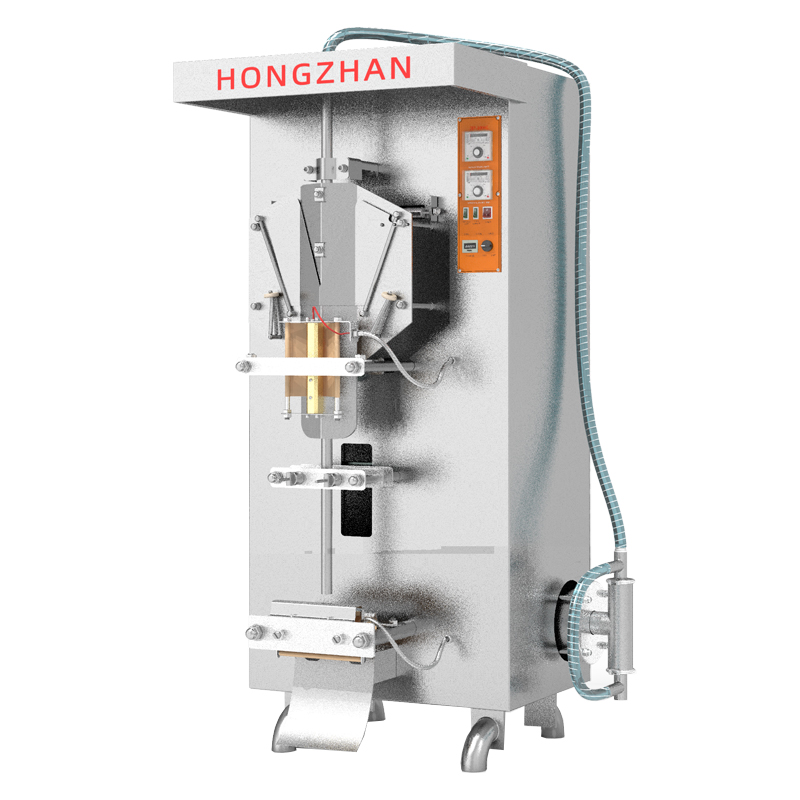

The HP1000L series combines roll-film bag forming, liquid filling and heat sealing for liquid sachet packaging. Different models are available in the supplied specifications for filling volumes of 200–500 mL and 200–1000 mL.
The series can be evaluated for water, soy sauce, free-flowing beverages and ice-pack liquids. Model selection depends on the liquid’s characteristics, required filling volume, packaging film and sealing format.
Key Features
Combined filling and sealing: Integrates bag forming, liquid dispensing and heat sealing into one packaging workflow.
Independent temperature controls: Separate vertical and horizontal sealing temperature controls allow adjustment for the selected packaging film.
Anti-drip filling design: Helps reduce residual liquid dripping after dispensing.
Heated sealing components: The supplied materials describe copper heating components for bag sealing.
Multiple model configurations: PE-film and composite-film versions support different packaging requirements.
Accessible operating controls: Controls are grouped for routine setup and operation.
Model Specifications
Item | HP1000L-I | HP1000L-II | HP1000L-III |
|---|---|---|---|
Filling volume | 200–500 mL | 200–1000 mL | 200–1000 mL |
Listed production speed | 1500–2100 bags/hour | 1000 bags/hour | 1000 bags/hour |
Listed film width | 240/320 mm | 240/320 mm | 240/320 mm |
Packaging film | PE film | PE film | Composite film |
Voltage | 220V/380V | 220V/380V | 220V/380V |
Power | 1.2 kW | 1.2 kW | 1.2 kW |
Machine dimensions | 850 × 750 × 1600 mm | 950 × 850 × 1900 mm | 1050 × 850 × 1850 mm |
A separate side-sealing version is also shown in the supplied materials. Its final model designation and configuration should be confirmed. HP1000L-I weight is omitted because the supplied images contain conflicting figures.
Application Requirements
Liquids containing particles, high-viscosity products, foaming liquids and temperature-sensitive products require separate evaluation. Filling accuracy, cleaning procedures and material-contact specifications should be confirmed using the intended liquid and film.
Request a Configuration
Please provide the liquid name, filling temperature, viscosity, presence of particles or foam, required volume per bag, bag format, film specification and target output.
