Product Description

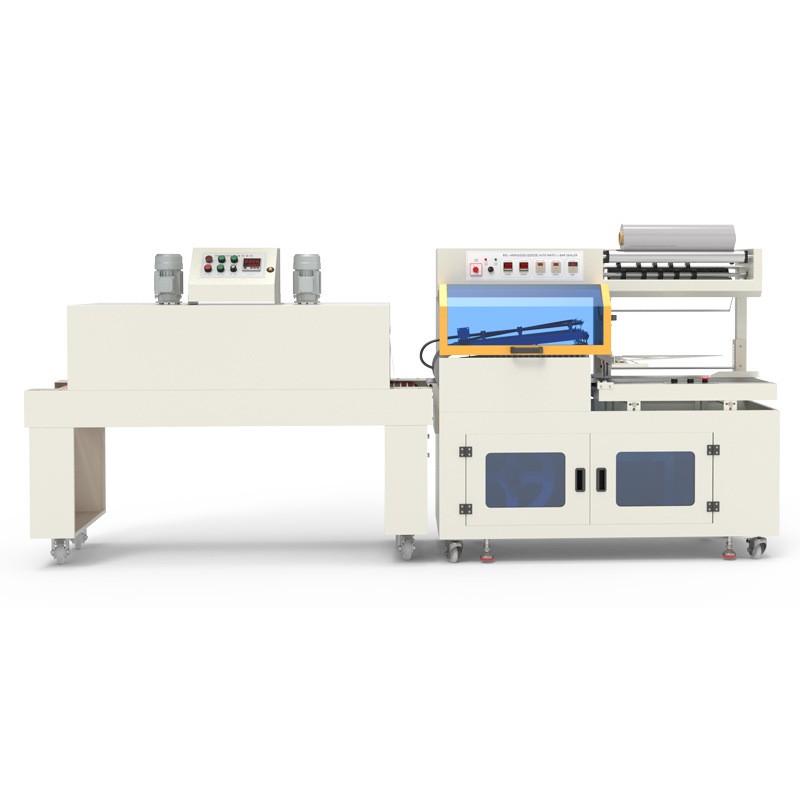

The BSL-450A automatic L-bar sealer works with a BS-4525 shrink tunnel to complete film sealing, cutting and heat shrinking in a connected packaging process. Using center-folded POF film, the system wraps products before transferring them through the tunnel, where heat shrinks the film around the package.

This packaging system is suitable for evaluating applications such as gift boxes, boxed food, personal care products, electronic products and grouped packs. Product dimensions, heat tolerance and film requirements should be checked before selecting the configuration.

Key Features

• Integrated sealing and shrinking: Connects film sealing and cutting with the subsequent heat-shrinking process.

• Adjustable sealing settings: Separate vertical and horizontal sealing temperature settings, sealing-time adjustment and a package counter support packaging setup.

• Product-size adjustment: Handwheel and guide adjustments help accommodate different products within the machine’s supported range.

• Circulating-air shrink tunnel: The supplied BS-4525 materials describe a dual-circulation arrangement with 12 metal heating tubes.

• Production-line integration: Conveyor connections can be assessed according to the existing production layout.

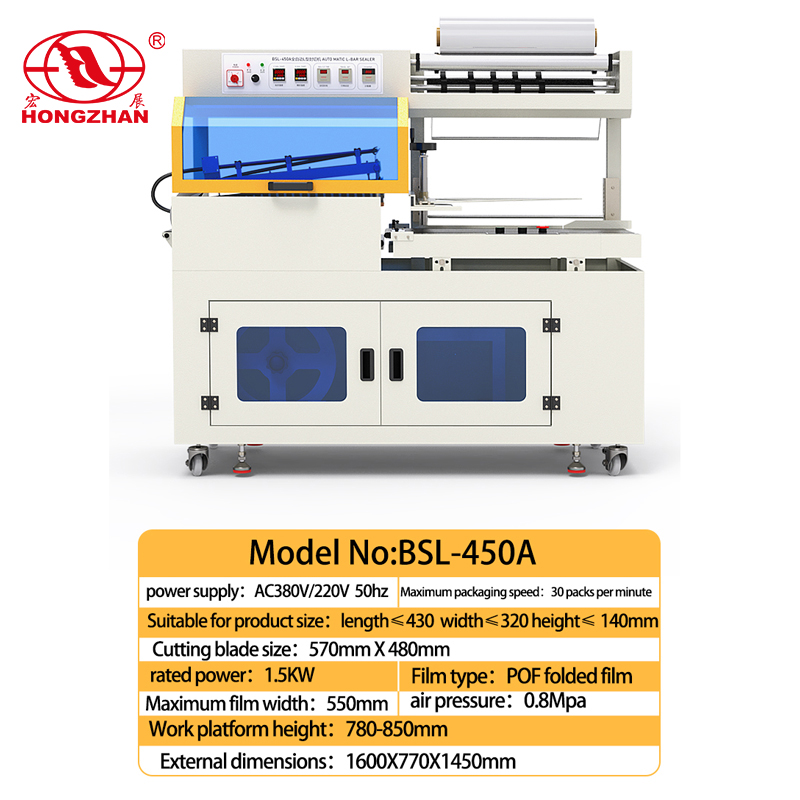

Technical Specifications

The power and machine dimensions above apply to the sealer only. Complete-system packaging capacity and electrical requirements must be confirmed for the selected tunnel configuration.

Request a Configuration

Please provide your product dimensions, pack format, target output, film specification, and available power and compressed air so the appropriate configuration can be assessed.
