Product Description

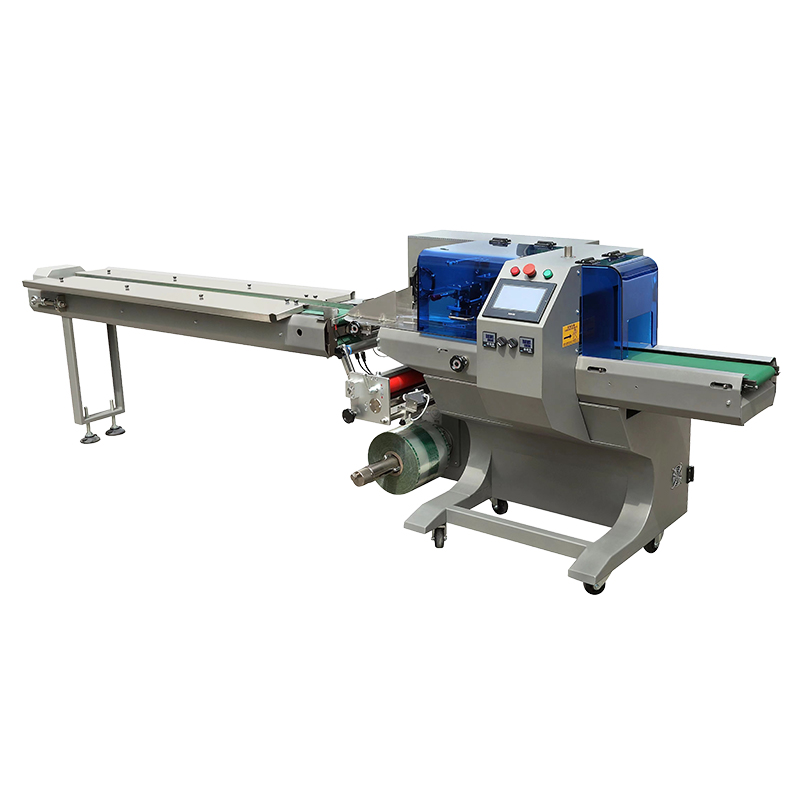

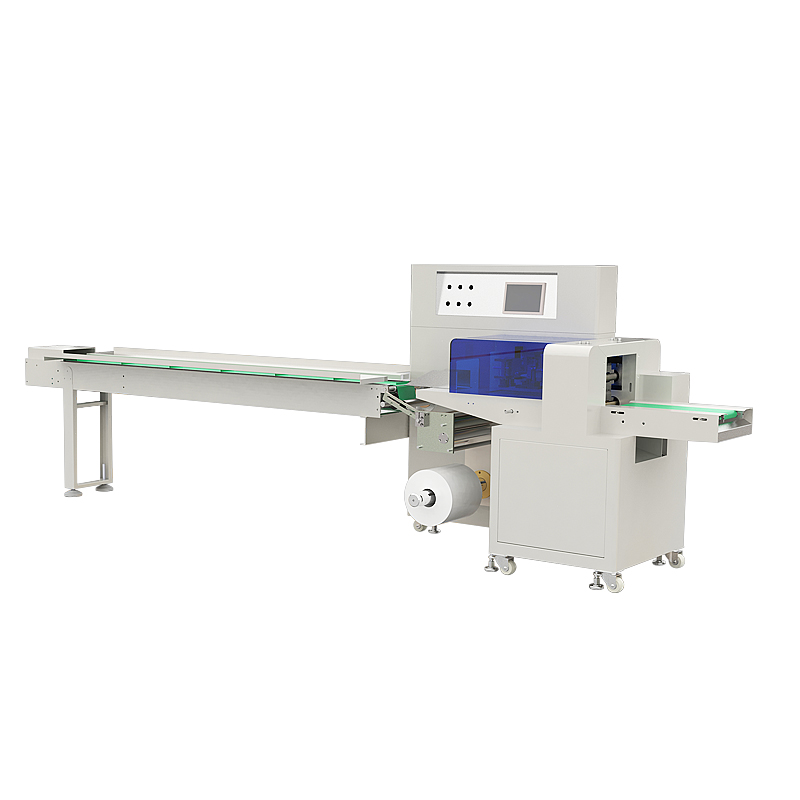

The BG-350B is a servo-driven horizontal flow wrapping machine for suitable solid products. It combines product conveying, roll-film bag forming, sealing and cutting in a continuous packaging process.
The supplied specification lists a packaging speed of 40–230 bags per minute. Applications can be assessed for products such as bread, candy, mooncakes, fruit, soap and disposable cutlery, subject to product dimensions, film requirements and feeding conditions.
Key Features
Servo-driven operation: Coordinates conveying and wrapping operations for continuous packaging.
Combined forming, sealing and cutting: Reduces separate bag-loading and sealing steps.
Central operating panel: The supplied detail images show a PLC control panel for operating adjustments; the final control configuration should be confirmed.
Sealing and cutting assembly: The materials describe alloy cutting components and a positioning-stop function.
Adaptable feeding arrangements: Conveyor and feeding options can be evaluated according to product shape and handling requirements.
Optional functions: Date coding, air evacuation, hole punching, sealing patterns, automatic feeding and gas filling can be assessed as configuration options.
Technical Specifications
Item | Specification |
|---|---|
Model | BG-350B |
Drive version | High-speed servo version |
Listed packaging speed | 40–230 bags/min |
Bag length | 90–220 mm |
Bag width | 30–160 mm |
Maximum product height | 60 mm |
Working voltage | 220V |
Bag width refers to the finished bag specification, not product width or maximum film width. Actual speed and suitable product dimensions depend on the selected configuration, film and feeding method. Optional functions are not automatically included as standard.
Request a Configuration
Please provide product photographs or samples, dimensions and weight, quantity per pack, packaging film, target output, feeding method and any required optional functions.
